Your Trusted Partner for CASE Minotaur DL550 in Indianapolis, Lafayette, Fort Wayne, and Franklin
Discover the Power of the CASE Minotaur DL550, Built for Versatility, Backed by Local Support

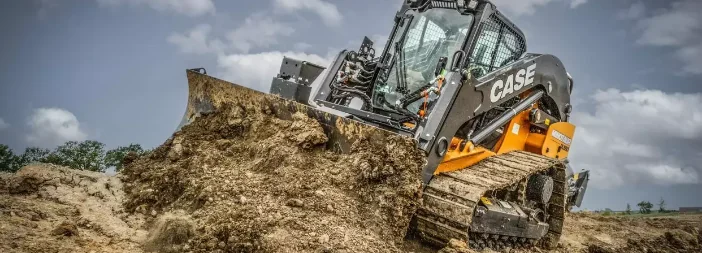

Looking for a compact dozer loader that delivers the performance of two machines in one? RPM Machinery is your trusted source for the CASE Minotaur DL550, one of the most advanced pieces of CASE construction equipment available today, in Indianapolis, Lafayette, Fort Wayne, and Franklin.
The DL550 represents an industry-first equipment category: a fully integrated dozer and compact track loader in a single machine. This groundbreaking machine combines the strength of a dozer with the agility of a loader, making it an ideal choice for grading, site prep, and heavy material handling.
Whether you’re working in tight urban spaces or tackling large-scale developments, the DL550 offers unmatched versatility and control. Backed by RPM Machinery’s responsive service, extensive CASE inventory, and deep knowledge of Indiana’s jobsite demands, you’ll have the confidence and support to get the job done right—every time.
Specifications
Horsepower@2500 RPM
- Gross 114 hp (85 kW)
- Net 114 hp (85 kW)
Dimensions
- Length – No Bucket: 129.5 in (3,290 mm)
- Width – No Bucket: 78.6 in (2,000 mm)
- Height – Top of Cab: 84.6 in (2,150 mm)
- Ground Clearance: 12.6 in (320 mm)
- Track Length on Ground: 66 in (1,680 mm)
- Dump Height: Max: 109 in (2,770 mm)
Engine
- Model: FPT F5B FL413 D*C005
- Emissions: Certification Tier 4 Final
- Type: Diesel 4-stroke, Turbo, D.I. Cylinders 4
- Fuel injection: Direct, high-pressure common
- Fuel: #2 Diesel
- Fuel Tank: 30.8 gal (116.5 L)
Performance
- Raise Time: 4.2
- Dump Time: 2.3
- Tipping Load: 11,000 lb (4,990 kg)
- Rated Operating Capacity: 35% of tipping load 3,850 lb (1,750 kg)
- Ground Bearing Pressure: 9.8 psi (67.6 kPa)
- Max Speed: 5.9 mph (9.5 kph)
CASE Minotaur DL550 Features
Dozer-Grade Performance
The DL550 is equipped with a fully integrated C-frame dozer blade that delivers true dozing capability. This includes a six-way blade with adjustable pitch, blade tilt, and angle settings that allow for superior maneuverability in rough grading, fine grading, and backfilling—all with the same blade, without needing to switch attachments. The system delivers a smooth operating plane, making the DL550 a strong choice for finish work and terrain contouring.
Powerful Loader Capabilities
Swap out the dozer blade for a wide range of attachments, and the DL550 transforms into a high-performance compact track loader. Its vertical-lift loader arm design ensures exceptional lift capacity and reach, perfect for loading trucks or handling heavy materials.
Industry-Leading Powertrain
Powered by a 114-hp engine and equipped with a robust hydraulic system, the DL550 delivers powerful breakout force and smooth control. Its hydrostatic drive and dozer-style undercarriage give it superior traction and pushing power, even in challenging terrain. Operators also benefit from adjustable electro-hydraulic controls (for fine-tuned responsiveness that adapts to both operator preference and jobsite demands) and high-flow auxiliary hydraulics that provide the operating power needed for demanding attachments.
Operator-Focused Cab Design
The spacious, pressurized cab offers comfort and control with an intuitive layout, 8-inch LCD monitor, and adjustable electro-hydraulic controls for blade and loader operation. Operators benefit from customizable joystick functions and industry-first features like blade shake and return-to-grade, which improve control and productivity.
Technology-Ready
Compatible with CASE SiteControl, 2D/3D grading systems, and CASE Universal Machine Control, the DL550 integrates easily with leading-grade technology platforms. It’s designed for precision and efficiency, delivering a smooth operating plane across varied job site conditions.
Why Contractors Choose the CASE Minotaur DL550
Two Machines in One
Save time and reduce transport costs by combining a compact dozer and a loader into a single machine. The Minotaur’s quick-change functionality lets you switch between attachments and tasks with minimal downtime.
Superior Ground Engagement
With a dozer-style undercarriage and hydrostatic drive, the DL550 delivers enhanced traction, pushing power, and grading accuracy, making it ideal for site development, roadwork, and material handling.
Increased Efficiency
Eliminate unnecessary machine overlap and streamline workflows. The DL550 minimizes the need for multiple machines on-site, helping crews work faster and more efficiently.
Lower Total Cost of Ownership
By consolidating equipment and reducing fuel usage, the DL550 helps lower operating expenses. Its durable design and CASE’s proven performance ensure long-term value.
Comfort that Drives Productivity
The operator-friendly cab, customizable controls, and advanced display systems reduce fatigue and increase precision, especially on longer jobs or with less-experienced operators.
Built for Indiana Job Sites
From the urban development needs of Indianapolis to the rugged demands of Fort Wayne, Lafayette, Franklin, and beyond, the Minotaur DL550 is designed to meet the varying terrain and job scope found across the state.
CASE ProCare Coverage with the DL550: Protecting Your Investment
When you invest in the CASE Minotaur DL550 through RPM Machinery, you receive more than a cutting-edge machine, you gain access to CASE’s comprehensive ProCare support program. Designed to maximize uptime and control costs, ProCare gives you the confidence to run your equipment harder and smarter.
- 3-Year/3,000-Hour Full-Machine Warranty: Rest easy with factory-backed coverage that protects against defects in materials and workmanship for three years or 3,000 hours.
- 3-Year/2,000-Hour Planned Maintenance: Stay ahead of service needs with regular inspections, fluid and filter changes, and scheduled maintenance—performed by CASE-certified technicians.
- 5-Year CASE SiteWatch™ Subscription: Monitor machine health, usage, and location in real-time. SiteWatch helps you optimize fleet management and detect performance issues before they cause downtime.
With CASE Construction ProCare, you’re backed by factory-level protection and proactive service from your trusted local CASE dealer—RPM Machinery.
Why RPM Machinery Is the Go-To Source for the CASE Minotaur DL550
RPM Machinery offers more than equipment. We help Indiana contractors stay productive, efficient, and profitable. Our team works closely with you to ensure the CASE Minotaur DL550 is the right fit for your applications, and we back that decision with reliable support at every stage. We deliver fast service, expert guidance, and flexible solutions where and when you need them most.
Local, Responsive Service in Every Region We Serve
With branches strategically placed across Indiana, our service and support teams are never far away. Whether it’s parts pick-up in Lafayette, on-site diagnostics in Fort Wayne, equipment selection in Franklin, or machine delivery coordination in Indianapolis, RPM provides the local access and quick turnaround you need to keep projects on track.
Maintenance and Repair That Keeps You Moving
Our factory-certified technicians are equipped to handle all your service needs, from routine maintenance to complex repairs. With advanced diagnostic tools and access to CASE service data, we ensure that your Minotaur runs like it should, day in and day out. Our scheduled maintenance plans can also help you stay up and running and avoid unnecessary downtime.
Tailored Financing Options
Buying equipment is a major investment. Our financing team works with you to create a plan that aligns with your cash flow and business objectives. Whether you’re looking to purchase one machine or add to an existing fleet, we’ll structure terms that help you stay financially agile while securing the equipment you need.
Short-Term Rentals
Need a compact dozer loader for a specific project or to handle peak-season demand? Our short-term rentals give you the flexibility to access high-performance equipment without the commitment of ownership. All rentals are maintained to the highest standards and come with full support from our trained technicians. industry first equipment category
Genuine CASE Parts in Stock
From filters and tracks to hydraulic components, we stock genuine CASE parts to keep your Minotaur performing in tough conditions. If you’re replacing wear items or sourcing hydraulic components, our knowledgeable parts team is here to make sure you get the right part quickly, so your equipment is back on the job without delay.
